Product Description
Caution Roll Company is a manufacturer of flagging tape for land surveying, made for crews that need quick, visible, non-adhesive field marking on survey stakes, property corners, control points, grade levels, and utility layout routes. Supplied as survey marking ribbon for stakes, the tape offers high-visibility colors, stable roll lengths, 2.5 mil to 4 mil thickness options, and clean tie-on use without adhesive residue.

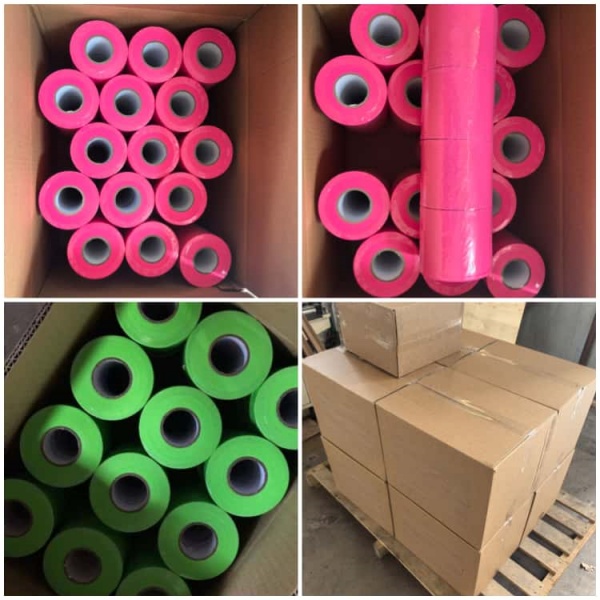

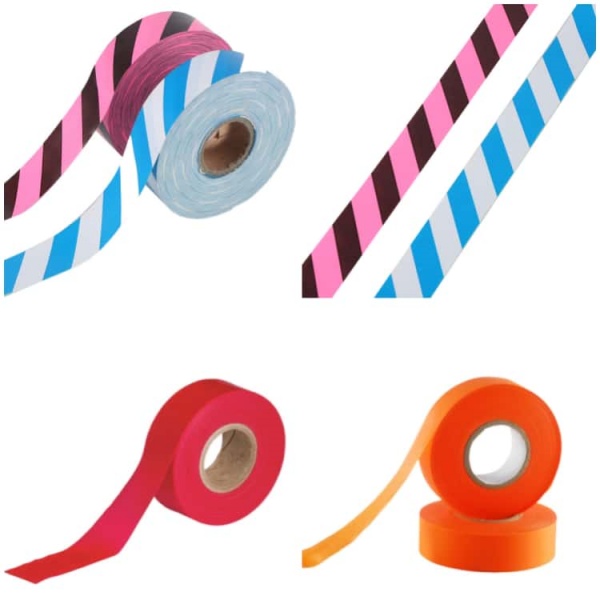

Product Photos
Product Overview

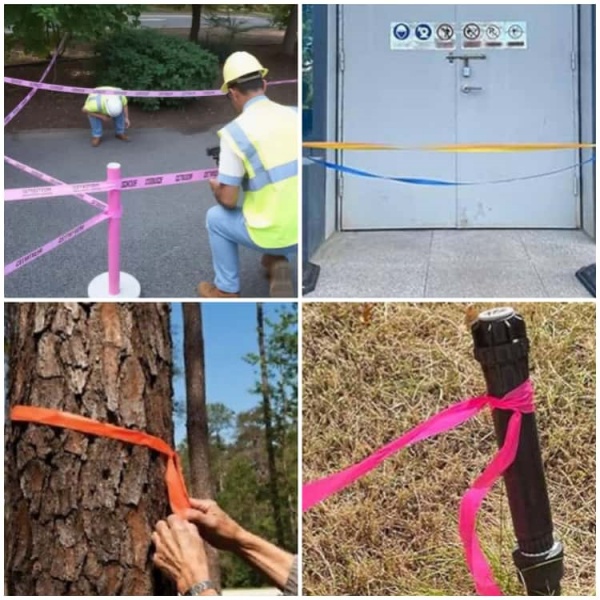

This flagging tape is made for land survey layout and engineering field marking, not for online surveys, decorative ribbon, or small retail craft use. It is a non adhesive survey flagging tape that can be tied, wrapped, stapled, or nailed to wooden stakes, rebar, lath, fence posts, branches, and temporary site markers. No adhesive surface is needed, so crews can use it on dusty soil, damp grass, gravel edges, unfinished concrete areas, or rough jobsite conditions where adhesive tape may not hold well.
For boundary and layout work, the tape also works as property boundary marking ribbon. It helps field teams identify property corners, parcel lines, traverse references, temporary benchmarks, and control points before excavation, grading, or site preparation begins. During factory sampling, standard 3 mil film is checked for roll width stability, with typical reference values of +/-1 mm width tolerance and +/-2% roll length tolerance. This helps keep marking work consistent across boxes, batches, and longer multi-phase projects.
Benefits
- High-visibility colors help survey stakes, property corners, grade levels, and control points stand out in grass, soil, gravel, and unfinished construction areas.
- Non-adhesive tie-on structure allows fast fastening to stakes, rebar, lath, posts, fences, and branches without surface cleaning or adhesive residue.
- 5 mil, 3 mil, and 4 mil thickness options support short-term marking, standard land surveying, and heavier field handling.
- Hand-tearable film lets crews pull and tear short strips quickly during layout work, without stopping at every point for a cutting tool.
- Color batch control helps orange, pink, yellow, blue, green, red, and white rolls stay visually consistent for project color coding.
- Color-coded rolls can be used as utility layout marking ribbonfor water, electric, communication, drainage, and proposed excavation routes.
What colors work best for survey marking ribbon on construction sites?
Color choice should follow the jobsite marking plan rather than simple preference. Bright orange, pink, yellow, blue, green, red, and white rolls can separate property corners, control points, grade references, utility layout routes, and temporary survey markings when several crews are working in the same area. Pink is often used for temporary survey markings in utility color systems, while white is commonly used to outline proposed excavation areas. For clearer field communication, the tape should be paired with stake notes, point numbers, date marks, or written layout instructions, especially when one color may mean different things on different projects.
Specifications
Item | Typical Value |
Product Type | Non-adhesive flagging tape for land surveying |
Material Options | PVC, PE, or vinyl film |
Standard Thickness | 2.5 mil, 3 mil, 4 mil |
Width Options | 1 in, 1-3/16 in, 1.5 in, custom width |
Width Tolerance | +/-1 mm |
Roll Length Options | 150 ft, 300 ft, 1000 ft bulk box option |
Roll Length Tolerance | +/-2% |
Structure | Tie-on, wrap-on, staple-on, no adhesive |
Surface Use | Survey stakes, lath, rebar, posts, fence, branches |
Tensile Strength | Factory reference 18-28 MPa depending on film type |
Elongation | Factory reference 120%-220% depending on material |
Hand Tear Performance | Tearable by hand under normal field use |
Temperature Reference | -20 C to 60 C field handling range |
Color Options | Orange, pink, yellow, red, blue, green, white |
Outdoor Visibility | High visibility for temporary field marking |
Color Consistency | Batch checked by visual color comparison |
Packing | Roll, box, or case packing for bulk supply |
Application | Land surveying, grade marking, utility layout, construction survey marking |
Applications
- Marking survey stakes for boundary work, parcel layout, and field reference points.
- Identifying property corners where bright temporary ribbon helps reduce missed or disturbed markers.
- Highlighting control points, traverse points, temporary benchmarks, and GPS control locations.
- Supporting grade levels, cut/fill stakes, slope references, curb layout, and earthwork preparation.
- Separating utility layout routes for water, electric, communication, drainage, and proposed excavation zones.
- Creating visible field references for construction survey marking tapeuse in roadwork, site grading, building layout, and temporary control point identification.
How does non-adhesive flagging tape support grade stakes and control points?
Non-adhesive flagging tape is useful because it can be tied directly to survey stakes, rebar, lath, fence lines, branches, or temporary posts without needing a clean bonding surface. In construction survey marking, this helps crews find control points, cut/fill references, grade levels, and layout positions before equipment moves into the work zone. A short strip tied near the top of a stake improves close-range visibility, while a longer tail is easier to spot in grass, soil, gravel, or uneven terrain. With typical elongation reference values of 120%-220% depending on material, the tape can flex during normal tying and handling without feeling too rigid in field use.
FAQ
Is this flagging tape adhesive?
No. It is a non-adhesive ribbon made for tying, wrapping, stapling, or nailing to survey stakes, lath, rebar, posts, and other temporary field markers.
Can it be used for property corners and control points?
Yes. It is suitable for property corners, control points, temporary benchmarks, survey stakes, and construction layout references.
Which thickness is suitable for land surveying?
3 mil is commonly used for standard field marking, while 4 mil is better for heavier handling, longer temporary exposure, or rougher jobsite conditions.
Can colors be used for utility layout marking?
Yes. Colors can support utility layout and proposed excavation marking, but each project should follow local marking rules, APWA/811 references, or internal site color instructions.
