Product Description
Caution Roll Company is a manufacturer of caution tape with tracer wire for underground utility route marking, printed warning, and surface locating support. The tape combines PE warning film with a continuous conductive wire, helping crews follow non-metallic pipes, fiber optic ducts, irrigation lines, and cable routes before excavation reaches the service area. For open-trench work, wire continuity, readable legends, and correct utility color matching are the details that make the product useful after backfilling.

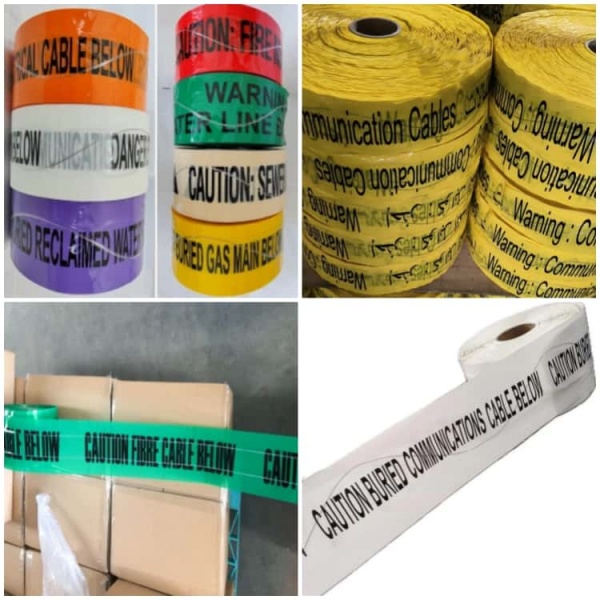

Product Photos
Product Overview
Caution tape with tracer wire is made for buried service projects where ordinary plastic warning tape is not enough. A normal tape gives a warning only after soil has been removed to the tape layer. With a built-in tracer wire, the installed line can also provide a conductor path for route tracing, provided the wire is not broken and the connection points are accessible where the project requires them.
This product is commonly used above plastic water lines, gas pipeline routes, telecom ducts, fiber optic cable paths, sewer lines, drainage runs, and irrigation networks. These services are often non-metallic, so they may not give a clear signal with standard locating methods. Adding a conductive wire inside the warning tape gives maintenance teams one more reference when checking the route before repair, expansion, or controlled excavation.

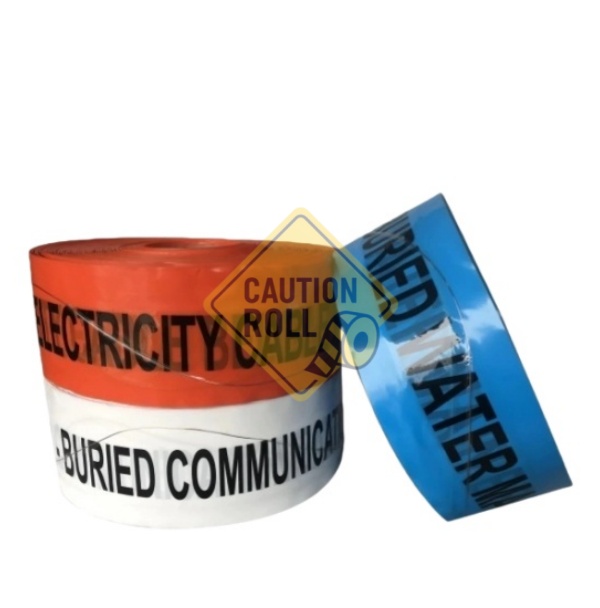

The tape can be produced in utility colors such as yellow, red, orange, blue, green, and purple. Black warning legends should stay easy to read at about 1m visual inspection distance, especially before final backfill. For stable installation, common film thickness is 0.10mm-0.25mm, with width tolerance around +/-2mm. Caution Roll Company can also adjust the wire material, roll length, printed message, and straight or wavy wire layout according to project requirements.
Benefits
- Gives non-metallic utility routes a traceable conductor path before digging reaches the pipe or cable zone.
- Combines printed excavation warning and conductive wire in one buried utility marking tape.
- Supports APWA-style color matching for electric, gas, telecom, water, sewer, and reclaimed water lines.
- Keeps warning text clear when the tape is exposed during later excavation.
- Offers stainless steel or copper clad steel wire for different soil moisture and project conditions.

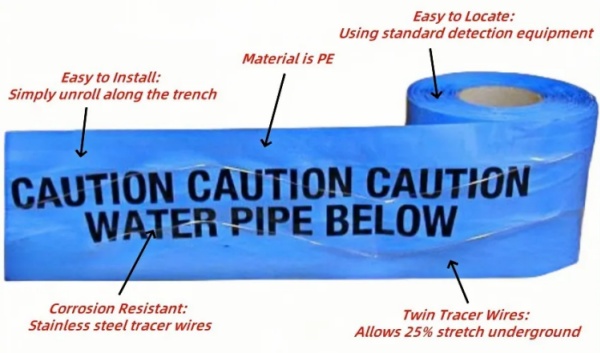

- Allows straight, twin, or wavy wire layouts depending on trench route and expected ground movement.
- Controls common width tolerance within +/-2mm for more consistent route coverage.
- Supports wire continuity checking before backfilling, reducing the chance of future locating failure.
- Helps reduce twisting, folding, and wire displacement during open-trench placement.
- Provides typical tensile strength of 25N/10mm-60N/10mm, depending on film structure and thickness.
- Offers elongation around 80%-250% for better handling during trench installation.
- Gives more practical route identification than ordinary caution tape when future tracing is required.
Technical Data Sheet
Item | Typical Value |
Product Type | Caution tape with tracer wire |
Base Film | PE or laminated PE film |
Typical Thickness | 0.10mm-0.25mm |
Thickness Tolerance | +/-0.02mm |
Common Width | 50mm, 75mm, 100mm, 150mm |
Width Tolerance | +/-2mm |
Roll Length | 100m, 250m, 300m, 500m |
Roll Length Tolerance | +/-3% |
Tracer Wire Material | Stainless steel wire or copper clad steel wire |
Wire Diameter | 0.3mm-1.2mm project option |
Wire Layout | Single straight wire, twin wire, or wavy wire |
Tensile Strength | 25N/10mm-60N/10mm |
Elongation at Break | 80%-250% |
Printing Method | Surface printed warning legend |
Print Clarity | Clear text at 1m visual inspection distance |
Color Options | Yellow, red, orange, blue, green, purple |
Detection Support | Supports locating when wire continuity is maintained |
Soil Resistance | Moisture resistant PE surface for buried use |
Installation Condition | Open-trench placement before final backfill |
Storage Condition | Dry area, away from direct sunlight |
Applications
- Plastic water pipe route marking where future tracing may be needed
- Gas pipeline trench warning with printed utility identification
- Fiber optic duct and telecom cable path protection
- Sewer, drainage, and irrigation line identification
- Electric cable trench warning when project specification allows
- Municipal utility installation before road or sidewalk backfilling
- Industrial park underground service route marking
- Open-trench projects requiring both printed warning and traceable wire support

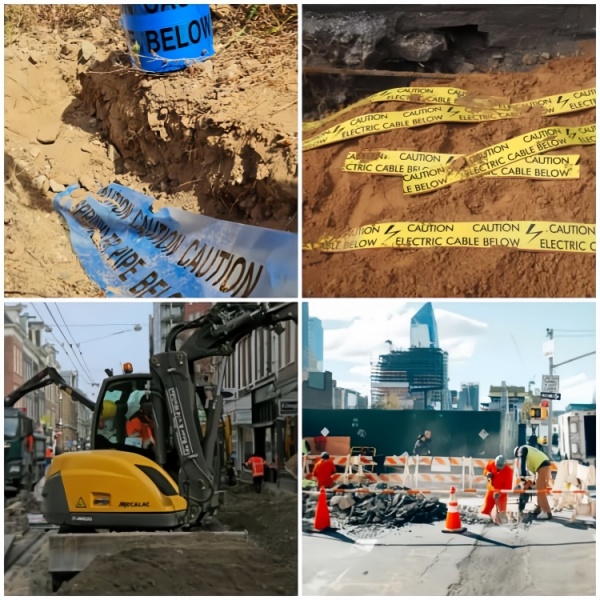

Where should caution tape with tracer wire be installed for better locating?
Caution tape with tracer wire works best when it is installed as a planned layer during open-trench construction. The tape is normally placed above the buried pipe, duct, cable, or service route, with the printed message facing upward and the wire kept continuous along the marked line. For wider corridors or multiple utility runs, more than one tape line may be used to make the route easier to identify later.
Placement depth should follow the project drawing, local practice, and utility owner requirements. Before final backfill, crews should confirm the tape color, legend direction, wire condition, and continuity. These checks matter because the tape may remain visible in soil while a damaged wire, weak splice, sharp fold, or inaccessible test point can still reduce future locating performance.
Detectability

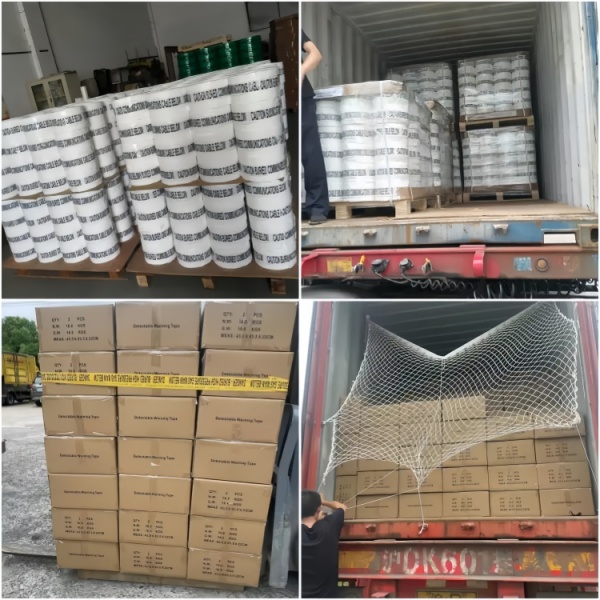

Packing Details
How does tracer wire improve underground utility detection?
Tracer wire gives the buried tape a signal path that locating equipment can follow from the surface. Instead of waiting until the tape is physically uncovered, crews can use the conductive wire to follow the approximate direction of a buried service line before excavation reaches the warning layer. This is especially useful for plastic pipe, fiber duct, irrigation pipe, and other non-metallic services that do not create a strong detectable signal by themselves.
The wire must remain continuous to perform well. A broken section, weak splice, sharp fold, or missing test point can reduce the tracing result. For this reason, sample checking and continuity testing before final backfill are practical steps, not optional details. For long-distance, high-risk, or code-controlled utility work, a dedicated tracer wire system may still be required. In many buried marking projects, however, underground caution tape with wire adds a useful route reference and printed warning layer.
FAQ
Is this tape the same as normal caution tape?
No. Normal caution tape mainly gives a visual warning. This product includes tracer wire to support buried route tracing when wire continuity is maintained.
Can the printed warning text be customized?
Yes. Warning text, utility type, color, width, roll length, wire material, and wire layout can be produced according to project requirements.
Does tracer wire guarantee exact utility location?
No. It supports route tracing, but excavation teams should still follow safe digging procedures and verify site conditions before mechanical digging.
What should be checked before bulk use?
Check sample thickness, width tolerance, print clarity, wire continuity, color matching, unwind stability, and compatibility with the project locating method.
