Heavy Duty Floor Marking Tape

Heavy Duty Floor Marking Tape

Material: Wear-resistant PVC backing
Adhesive: Rubber-based pressure-sensitive adhesive
Common Size: 50mm x 30m, 75mm x 30m, 100mm x 30m
Thickness: 0.8mm-1.5mm typical factory range
Colors: Yellow, red, blue, green, white, black, yellow/black
Use Areas: Forklift lanes, pallet zones, loading docks

Caution Roll Company is a manufacturer of heavy duty floor marking tape for forklift lanes, pallet staging areas, loading docks, and high-wear industrial floors. This abrasion resistant floor marking tape uses a thicker 0.8mm-1.5mm PVC backing with rubber-based adhesive to keep floor lines visible under forklift traffic, pallet drag, routine cleaning-machine contact, and repeated turning movement. It is made for warehouses and production plants where ordinary thin colored tape wears out too quickly.

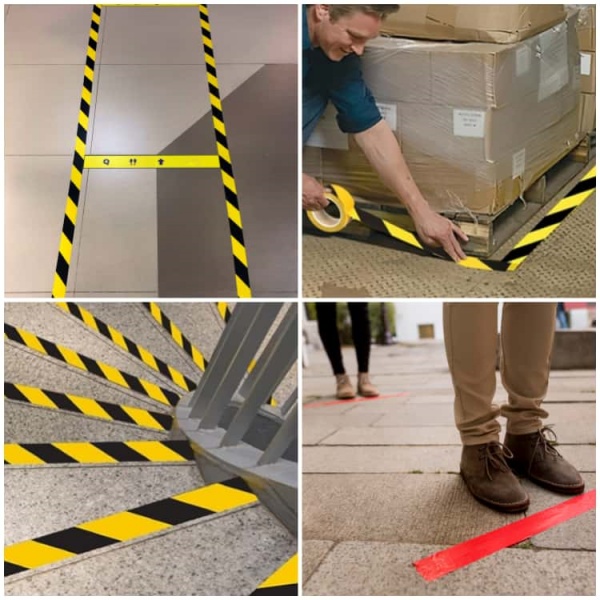

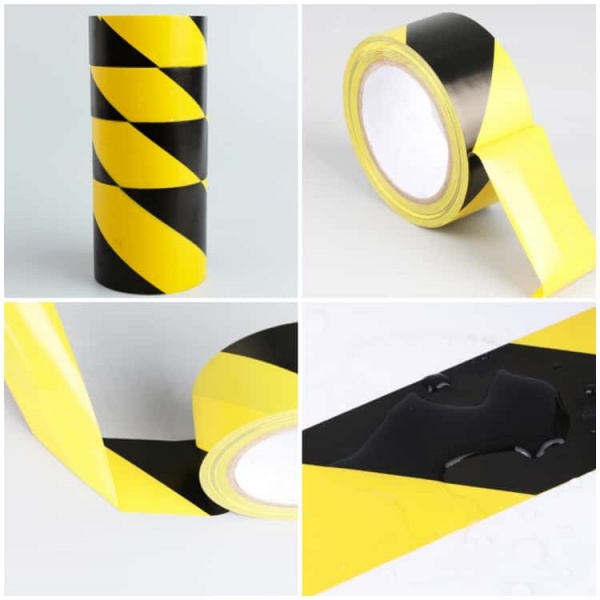

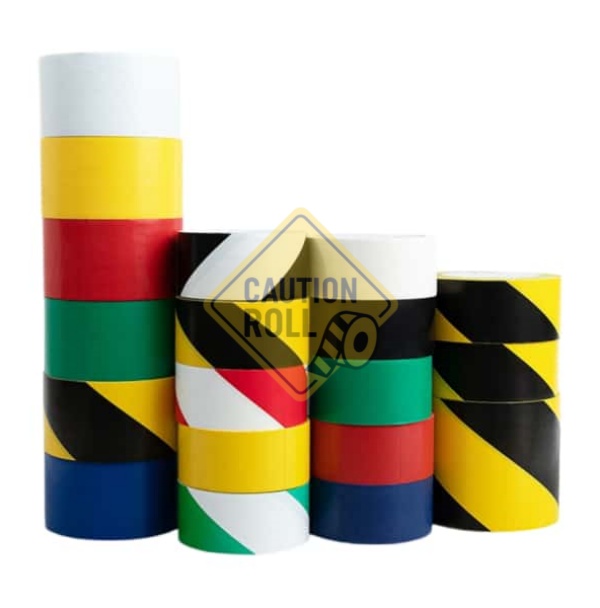

Product Photo

Technical Data Sheet

Item	Typical Value
Product Type	Heavy duty PVC floor marking tape
Backing Material	Wear-resistant PVC film
Adhesive Type	Rubber-based pressure-sensitive adhesive
Total Thickness	0.8mm-1.5mm typical factory range
Standard Roll Width	50mm, 75mm, 100mm
Standard Roll Length	30m per roll
Custom Size	Width and length available by project demand
Peel Adhesion	6-10 N/25mm typical value
Tensile Strength	35-55 N/25mm typical value
Elongation	120%-180% typical value
Holding Power	>=24 h typical value on steel panel
Service Temperature	-10 C to 60 C
Application Surface	Clean concrete, epoxy floor, tile, sealed hard floor
Slitting Tolerance	+/-1mm typical value
Edge Performance	Reduced curling and edge lifting after proper application
Abrasion Observation	Surface scuffing checked after pallet drag sample use
Cleaning Contact	Suitable for routine floor cleaning machine contact after full bonding
Color Options	Yellow, red, blue, green, white, black, yellow/black
Storage Condition	15 C-30 C, dry indoor storage
Recommended Application	Apply on dry, clean, degreased floor surface

Benefits

Thicker 0.8mm-1.5mm PVC backing helps resist rolling pressure from forklifts, pallet trucks, carts, and warehouse equipment.
Rubber-based adhesive supports stable bonding on clean concrete, epoxy floors, tiles, and sealed industrial surfaces.
Edge lift resistant floor tape structure helps reduce catching risks from pallet bottoms, wheels, and cleaning-machine brushes.
Typical +/-1mm slitting tolerance supports straighter line edges and cleaner warehouse layout marking.
Surface scuffing can be checked after pallet drag sample use, especially in staging zones and turning routes.
High-visibility colors help separate forklift lanes, pallet areas, loading boundaries, and restricted work zones.

Applications

Marking forklift lanes in warehouses, workshops, and production plants
Defining pallet staging zones where dragging, loading, and transfer movement occur
Separating loading dock boundaries and material handling routes
Marking heavy-traffic aisles, crossing points, and forklift turning areas
Identifying finished goods storage lanes and pallet parking spaces
Creating equipment operation zones around machines and work cells
Supporting 5S floor layout marking in high-abrasion industrial areas
Keeping route lines visible where floor scrubbers or cleaning machines are used

What Should Be Checked Before Using Heavy Duty Floor Marking Tape in Pallet Movement Areas?

Before applying the tape in pallet movement areas, the actual floor condition should be checked more carefully than in normal walking zones. Pallet bottoms, pallet jacks, and turning forklifts create scraping force across the tape surface, so a sample strip should be placed in the real traffic path instead of a quiet corner. After 24-72 hours, check whether the edge lifts, the adhesive loses contact, or surface scratches reduce visibility. This is especially useful near aisle entrances, pallet staging points, loading areas, and other locations where damage often starts earlier.

Packing Details

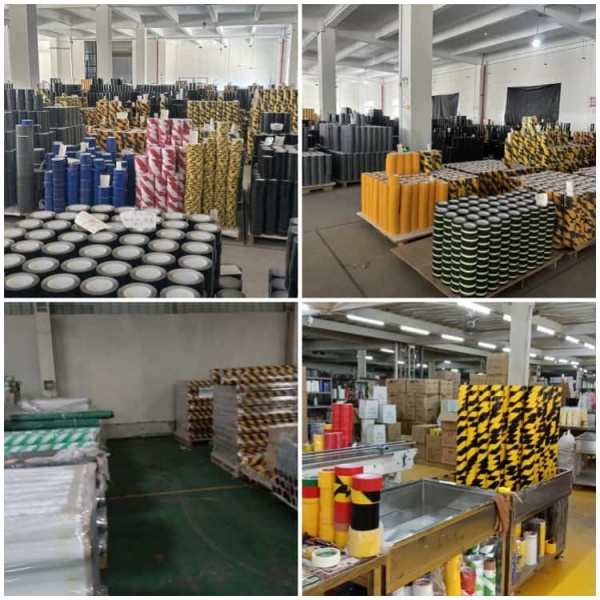

Production and Warehouse

How Does Thick PVC Floor Marking Tape Perform Under Forklift Traffic?

Thick PVC floor marking tape is designed to handle repeated rolling pressure and surface abrasion from forklift traffic. Compared with light-duty marking tape, the thicker backing helps the line remain readable when wheels pass over the same route every day. In forklift lanes, the real performance check is not only whether the color looks bright on day one, but whether the edge stays flat, the adhesive remains in contact, and the surface resists cutting or scraping marks. A properly selected industrial marking tape should keep the boundary visible after pallet movement, cleaning-machine maintenance, and daily warehouse operation.

FAQ

Q1: Is this tape suitable for forklift traffic areas?

Yes. It is designed for forklift lanes, pallet zones, loading docks, and high-frequency industrial floor routes.

Q2: What floor preparation is required before application?

The floor should be clean, dry, flat, and degreased, with dust, oil, moisture, wax, and old adhesive residue removed.

Q3: Can the tape resist cleaning machine contact?

Yes. After full bonding, it is suitable for routine cleaning-machine contact under normal industrial maintenance.

Q4: Can size and color be adjusted for factory projects?

Yes. Width, length, color, and thickness can be adjusted according to warehouse layout requirements.
