Magnetic Guide Tape For AGV

Magnetic Guide Tape For AGV Material: Flexible magnetic rubber with PVC protective surface Common width: 30 mm, 50 mm, or custom width Thickness: 1.0 mm - 1.5 mm typical range Color: Black magnetic base, optional visible surface color Adhesive: Pressure-sensitive backing for clean floor bonding Use area: Assembly line AGV routes and production-floor transfer paths Contact Us

Caution Roll Company supplies magnetic guide tape for agv routes used on assembly lines, production floors, and repetitive material transfer paths. The tape forms a stable magnetic route that AGV sensors can read without cutting concrete or installing buried wires. For factories that often adjust line layouts, it offers a practical way to build or revise AGV paths while paying close attention to sensor stability, floor wear, route visibility, and local section replacement.

Product Overview

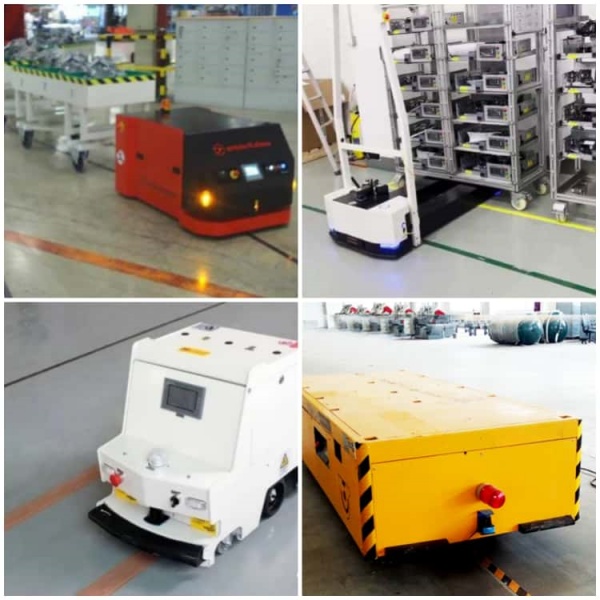

This magnetic guide tape for agv is built for production areas where AGVs run the same route many times a shift and the guidance line must stay readable. It is applied directly to epoxy floors, sealed concrete, or industrial tiles to create a floor-mounted AGV navigation tape route. For assembly lines, work cells, and feeding stations, the tape helps keep vehicle movement predictable through straight sections, branch points, loading areas, and controlled turns.

Caution Roll Company manufactures this production-floor magnetic guide tape for factories that need a practical route material, not a full AGV system redesign. The magnetic layer gives the sensor a consistent signal, while the PVC surface helps reduce edge lifting caused by repeated wheel contact. In sample floor checks, clean and dry epoxy flooring gave noticeably better adhesive contact than dusty or oily surfaces, especially near stop-start points, loading stations, and turning zones where wheel pressure is concentrated.

Benefits

• Supports stable magnetic sensor reading on repetitive material transfer routes where AGVs follow the same path throughout the day.
• Installs without floor cutting, slotting, or concrete repair, making it faster to deploy than buried wire guidance.
• Helps reduce downtime when an assembly line is extended, adjusted, or moved to a new material flow direction.
• The PVC top surface is designed for daily wheel contact, light cleaning, and normal production-floor abrasion.
• Damaged sections can be replaced locally, so the whole route does not need to be removed.
• Custom width and magnetic strength can be matched to AGV sensor type, sensing height, and factory route design.

How does magnetic guide tape help during production layout changes?

Magnetic guide tape is useful when a factory needs to revise a route without rebuilding the floor. Compared with buried wire systems, the tape can be shortened, extended, removed, or rerouted with much less disruption. This matters on assembly lines where a new workstation, inspection table, buffer area, or packing point may change the route. For smoother sensor reading, the new path should avoid sharp turns and leave enough straight distance before intersections, so the AGV can settle onto the magnetic line before changing direction.

Technical Data Sheet

Application

1. Assembly line AGV routes for repeated station-to-station material transfer
2. Production line handling between feeding points, work cells, buffer zones, and inspection areas
3. Repetitive transfer paths in electronics, automotive parts, packaging, and general assembly plants
4. Temporary route changes during line upgrades, trial production, or factory layout adjustment
5. Production-area safety routes where visible floor guidance helps workers recognize AGV travel paths
6. High-frequency turning zones, loading points, and straight-line sections that need stable magnetic reading

What should be checked before installing magnetic guide tape on a factory floor?

Before installation, the floor condition should be checked carefully because both adhesive bonding and sensor stability depend on the surface. Dust, oil, water, or loose floor coating can cause tape edge lifting, especially near turns and loading areas. The route should follow the real material flow, not only the shortest distance, because repeated stopping, turning, and wheel pressure usually happen at the same points every shift. For new layouts, a short test section is recommended to confirm sensor height, magnetic signal response, and floor adhesion before full installation.

FAQ

Can this tape be used on existing production floors?

Yes. It can be applied on clean epoxy floors, sealed concrete, and industrial tiles. The surface should be dry, flat, and free from oil before installation.

Is magnetic guide tape suitable for changing AGV routes?

Yes. It is suitable for factories that need faster route adjustment than buried wire guidance. Changed or damaged sections can be replaced without rebuilding the full route.

What affects the service life of the tape?

Floor condition, AGV wheel pressure, cleaning frequency, turning radius, and installation quality all affect service life. High-wear turning points may need earlier inspection.

Can the tape size or magnetic strength be customized?

Yes. Width, thickness, roll length, color, and magnetic strength can be adjusted according to AGV sensor type, sensing height, and production-floor route design.
